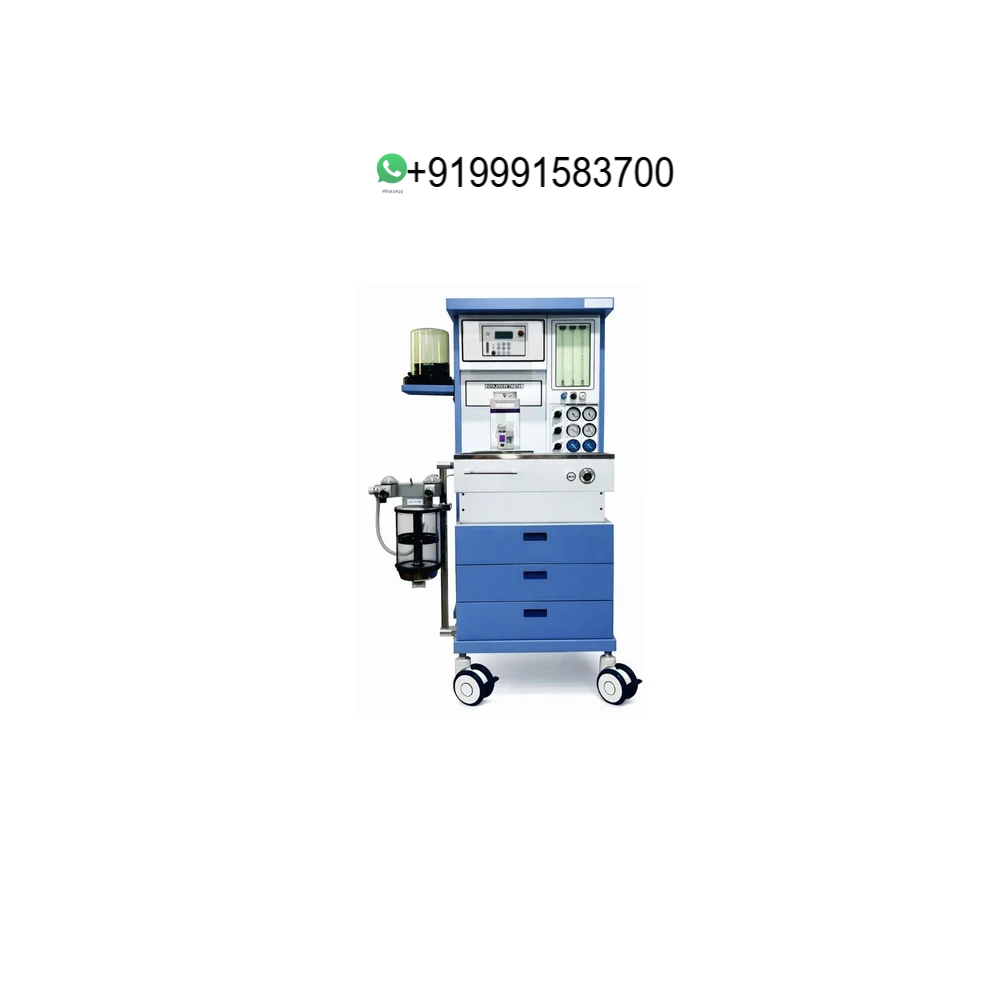

Machine Type High end workstation
No of Gas Lines 3 gas
Vaporizer Slots Single
Power Supply 230 V AC
Feature
Rigid electrostatically powder-coated metal structure
Three large storage drawers for accessories
CMV ventilation mode to meet ventilation requirements
Integrated pneumatically driven, microprocessor-controlled ventilator
Oxygen Ratio Controller (ORC) / Hypoxia Guard – maintains minimum 25% O₂ in breathing circuit
3-tube / 5-tube cascade type (optional) rotameter for 3 gas sources
Selectatec type manifold for mounting 2 vaporizers
Stainless steel top for writing & medicine placement
Circle absorber with open & closed circuit changeover
Large monitor shelf at eye level
Gas-specific pin index yokes (2 O₂ & 1 N₂O cylinder)
Anti-static castor wheels with locking system
Technical Specification
🔹Gas System
Gas Sources: O₂, N₂O, Air
Flowmeter: Dual / Triple tube cascade type
O₂ Flush: 35–75 L/min
Hypoxia Protection: Mechanical ORC system
Cylinder Mounting: 2 × O₂, 1 × N₂O
🔹 Ventilator
Type: Pneumatically driven, microprocessor controlled
Ventilation Modes:
CMV
SIMV
Manual
Standby
Tidal Volume: 50 – 1500 ml
Respiratory Rate: 4 – 60 bpm
I:E Ratio: 1:1 to 1:4
Pressure Limit: Adjustable
🔹 Breathing System
Circle absorber with CO₂ canister
Open / Closed circuit mode
APL Valve
Rebreathing system
🔹 Electrical
Power Supply: 220–240V AC, 50 Hz
Backup Battery: Optional
Integrated alarms (audio & visual)
Anesthesia Vaporizers((ISOFLURANE)
Feature – Calibrated concentration control, high safety
Dimension (L*W*H) – 90 x 185 x 197 mm Millimeter (mm)
Material – Aluminium
Display – Analog concentration scale
Advantage – Precision delivery of gaseous anesthetic agents
Weight – 7.00 Kilogram
Packing
Dimension: Overall Size (Approx.):
Height: 1350 – 1400 mm
Width: 600 – 650 mm
Depth: 600 – 700 mm
Weight
Net Weight: Approx. 85 – 100 kg
