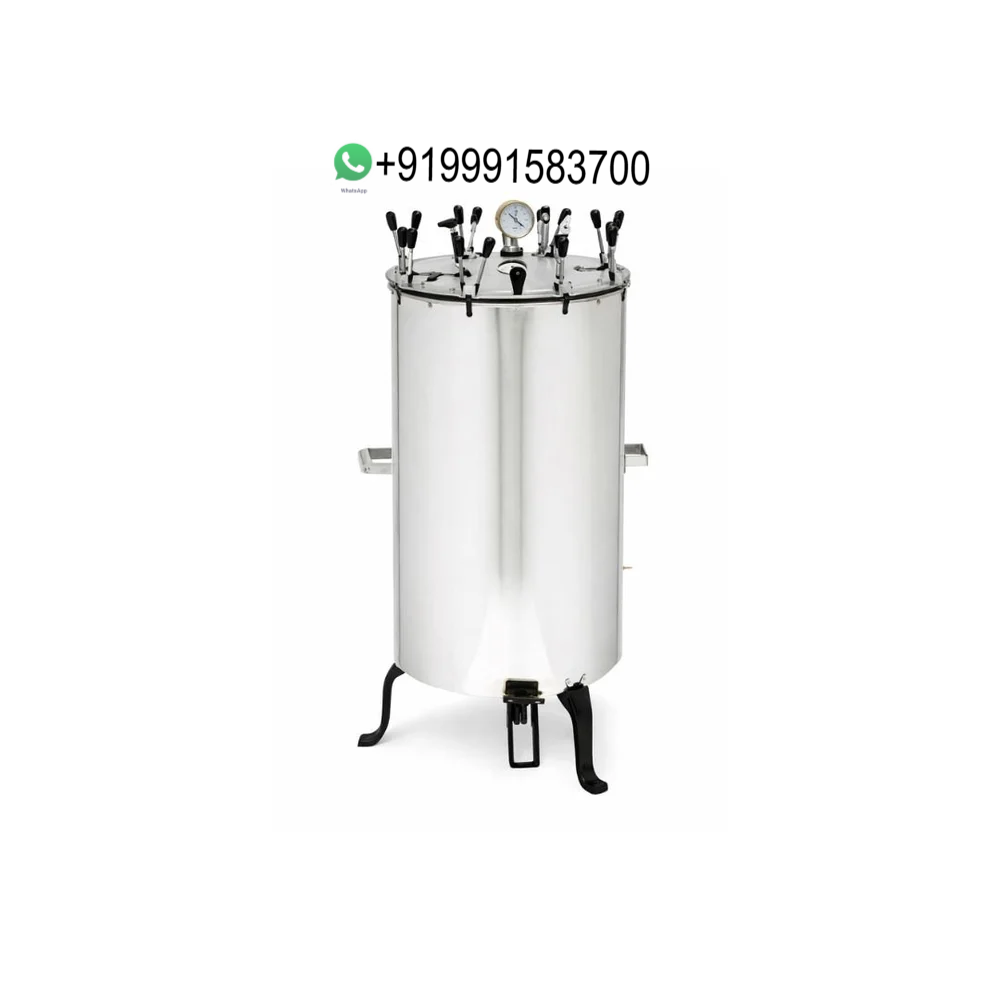

Chamber Volume 70 L
Mount Type Vertical
Chamber Material Stainless Steel 304
Heating Mode Electric
Key Features
Heavy duty vertical double wall construction
Inner chamber made of SS 304 grade Stainless Steel
Outer jacket made of thick Stainless Steel
Double wall water jacket for uniform temperature distribution
Heavy radial locking system with wing nuts
Aluminium die-cast / Stainless Steel lid
Pressure gauge (0–30 PSI)
Double safety valve system
Steam release valve & vacuum release valve
Water level indicator
Heat resistant rubber gasket
Corrosion resistant & leak-proof structure
Mounted on strong Mild Steel / Stainless Steel legs
Technical Specifications
Chamber Size: 18 inch (Diameter) × 30 inch (Height)
Approx. Capacity: 95–105 Liters
Construction: Double Wall (Inner Chamber + Outer Jacket)
Inner Chamber Material: SS 304
Outer Body Material: Stainless Steel
Working Pressure: 15–20 PSI
Maximum Pressure: 20 PSI
Operating Temperature: 121°C to 134°C
Heating System: Heavy duty immersion heaters in water jacket
Power Supply: 220–240V AC, 50 Hz, Single Phase
(Optional: 3 Phase for heavy load)
Pressure Gauge Range: 0–30 PSI
Safety System: Double safety valve + Steam exhaust valve
Insulation: Water jacket insulated body
