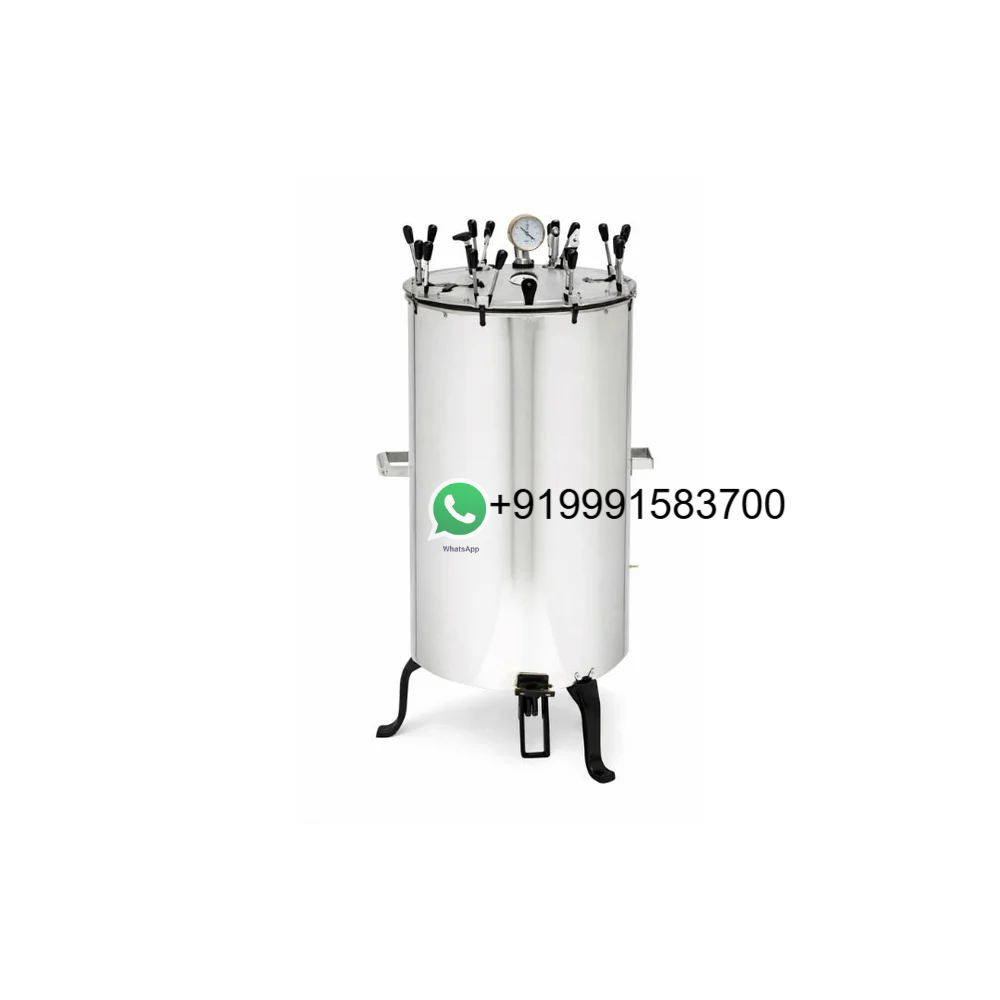

Chamber Volume 50 L
Mount Type Vertical
Chamber Material Stainless Steel 304
Max Temperature 121°C to 134°C
Heating Mode Electric
Key Features
Vertical heavy duty double wall construction
Inner chamber made of Stainless Steel (SS 304)
Outer jacket made of Stainless Steel
Double wall design ensures uniform heating & better insulation
Heavy duty radial locking system
Aluminium die-cast / Stainless Steel lid
Pressure gauge (0–30 PSI)
Double safety valve system
Steam release valve & vacuum release valve
Water level indicator for jacket
Heat resistant rubber gasket
Leak-proof and corrosion resistant body
Mounted on sturdy Mild Steel / Stainless Steel legs
Technical Specifications
Chamber Size: 12 inch (Diameter) × 29 inch (Height)
Capacity: 50 Liters
Construction: Double Wall (Inner Chamber + Outer Jacket)
Inner Chamber Material: SS 304
Outer Body: Stainless Steel
Working Pressure: 15–20 PSI
Maximum Pressure: 20 PSI
Operating Temperature: 121°C to 134°C
Heating System: Electric immersion heaters in outer jacket
Power Supply: 220–240V AC, 50 Hz, Single Phase
Pressure Gauge Range: 0–30 PSI
Safety System: Double safety valve + Steam release valve
Insulation: Water jacket type for uniform sterilization
