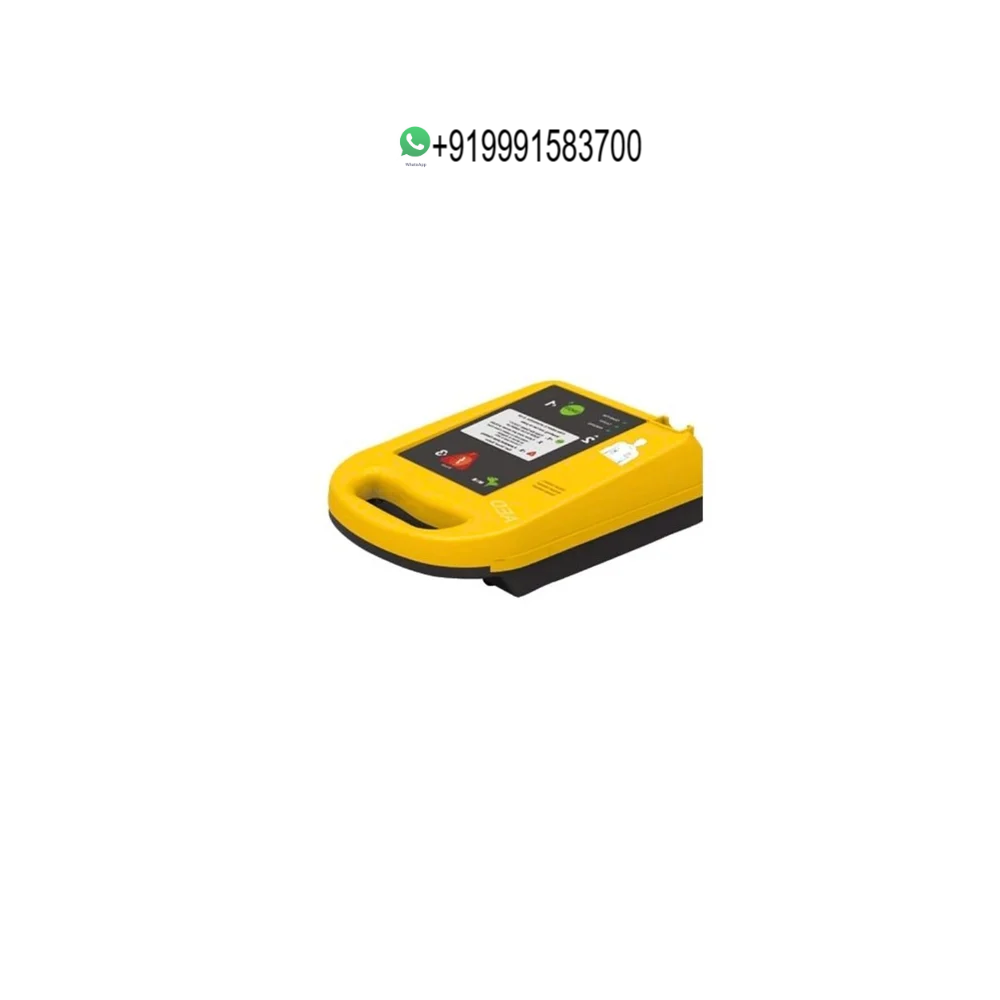

Mode AUTOMATED EXTERNAL DEFIBRILLATOR (AED)
Energy range 150 J, 200 J
Battery type Non rechargeable
Feature
Output: Biphasic truncated exponential
Energy Sequence: 150 J, 150 J, 200 J
Charge Time:
8 seconds to 150 J
10 seconds to 200 J (new battery)
Analysis Time: 9 seconds
Maximum Time from Rhythm Analysis to Readiness for Discharge:
Less than 20 seconds (with new battery)
Less than 25 seconds (after 6 shocks)
Maximum Time from Power ON to Readiness for Discharge: Less than 25 seconds
Audible Prompts: 22 audible prompts
Visual Prompts: LED prompts
Controls: Two buttons – On/Off, Shock
Output Energy Accuracy: ±15% into any impedance from 25 Ω to 175 Ω
Maximum Voltage: 1200 V ±50 V
Output Disabled When Patient Impedance Is Outside Limits: 20 Ω to 200 Ω
Part No.: CR123A × 4 × 2
Non-Rechargeable Capacity: 2.8 Ah
Capacity: 100 discharges at 200 Joules or 120 discharges at 150 Joules
Shelf Life (25°C ±15°C): 5 years standby (after installation)
Operating Temperature: 0°C to 40°C
Operating Humidity: Relative humidity between 30% and 95% (non-condensing)
Storage Temperature (Without Battery): −20°C to 55°C
Storage Humidity (Without Battery): Up to 93% (non-condensing)
Packing:
Dimensions: 303 × 216 × 89 mm
Weight – 2.0 kg
