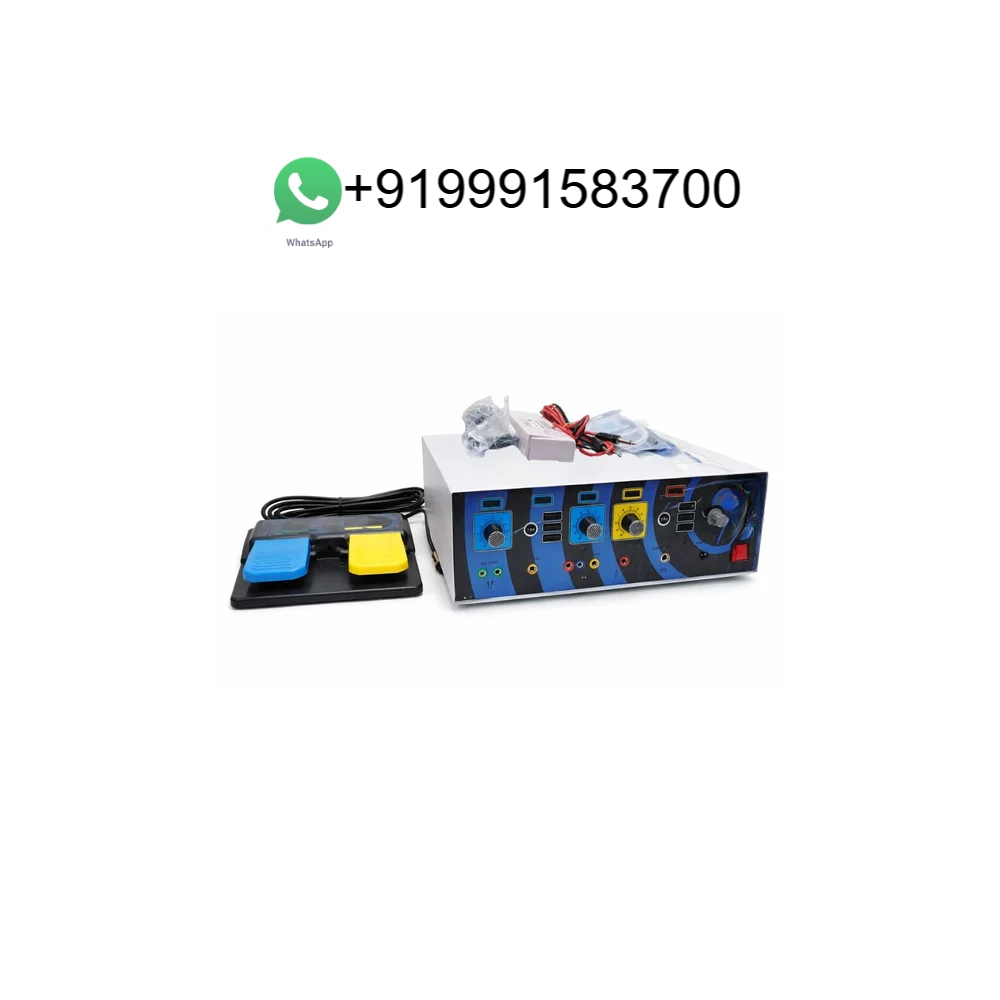

Machine type Electrocautery
Output power 400W
Application General surgery
Portability Handheld
Feature
Advanced microprocessor-controlled electrosurgical unit
Supports Monopolar and Bipolar surgical modes
Digital power display with precise output control
Patient safety alarm system with return electrode monitoring
Compatible with hand switch and foot switch
Robust metal cabinet suitable for OT and continuous use
Technical Specification
Output Frequency: Mono-polar generator 500 kHz ±25 kHz
Pure Cut: 400 W / 500 Ohms load
Blend I Cut: 300 W / 500 Ohms load
Blend II Cut: 225 W / 500 Ohms load
Coagulation: 160 W / 500 Ohms load
Bipolar Coagulation: 100 W / 125 Ohms load
Spray Coagulation: 100 W / 125 Ohms load
Power Supply: 220–240V AC, 50/60 Hz
Patient Plate Monitoring: Yes (REM / contact quality monitoring.
Packing Box Content
Main Unit – 1 Qty
Surgical Handle : 01 No.
Foot Switch : 01 No.
Inactive Plate (Patient Plate) : 01 No.
Bipolar Tweezer Forceps (Blue Color)
Cable : 01 No.
Main Power Cable : 01 No.
Packing:
Dimensions (Approx.) : (L × W × H): 550 × 550 × 300 mm
Gross Weight: 10 – 12 kg (approx.)
