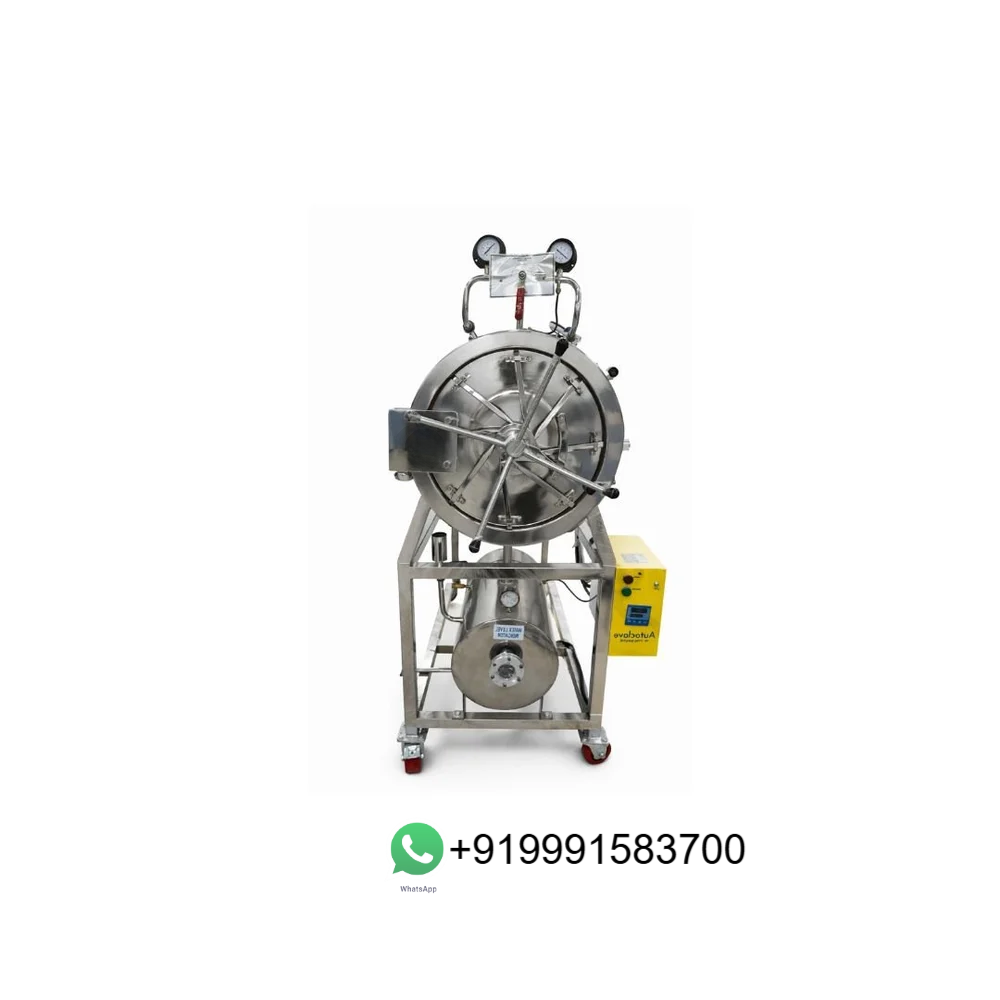

Chamber Volume 40 L
Mount Type Horizontal
Chamber Material SS 304 / SS 316
Max Temperature 121 C
Heating Mode Electric
Key Features
Designed for steam sterilization by gravity air removal
Sterilization temperature: 121°C
Fast or slow exhaust option available
Suitable for sterilizing containers, ampoules, vials, bottles, test tubes & rubber articles
Working pressure up to 20 PSI (1.36 kg/cm²)
Vacuum up to 250 mm (10″) of Hg
Inner chamber made of S.S. 316 / S.S. 304
Outer chamber made of S.S. 304 or boiler grade steel with reinforcements
Optical door inner construction (SS/MS lined)
Radial locking system
Tongue & groove door system (for larger models)
Silicon gasket for airtight sealing
Multiport valve operation available
Diaphragm type PRV (for direct steam models)
Generator models fitted with pressure switch & low water cut-off system
Control device incorporated in electrical models to prevent excess steam release
Reduces steam consumption & prevents steam escape in room
Technical Specifications
Chamber Size: 12 inch (Diameter) × 22 inch (Length)
Capacity: 40 Liters
Construction: Single / Double Wall (As per model)
Inner Chamber Material: SS 304 / SS 316
Outer Body: SS 304 / Boiler grade steel
Working Pressure: Up to 20 PSI (1.36 kg/cm²)
Vacuum Capacity: Up to 250 mm Hg
Working Temperature: 121°C
Door System: Radial locking type
Heating: Electric heater / Steam operated
Control Panel: Electrical control box with switches & indicator lamps
Safety System: Safety valve + Pressure release valve
Power Supply: 220–240V AC, 50 Hz (Electric Model)
