Cable Type Armoured
Jacket Material Silicon
Diameter 5 mm
Packaging Type Packets
Application Hospital
Usability Reusable
Length 2.3 Meter

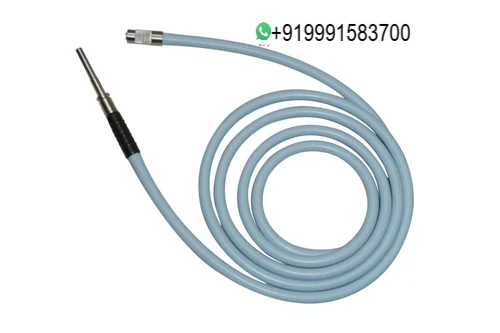

Surgical Light Guide Optical Fiber Cable
Medical-Grade Video Cables
Our Medical-Grade Video Cables are designed for high-performance optical transmission in critical medical applications, such as laparoscopy, endoscopy, and surgical microscopy. Engineered with precision and reliability, these cables ensure exceptional light transmission and durability in demanding clinical environments.
Specifications:
Type: Video Cables
Coil Length: Up to 30 Feet
Compatible Adapters: Storz, Stryker, Wolf, Olympus, ACMI, Pentax
Jacket Material: Silicone
Country of Origin: Made in India
Certification: CE Certified, ISO 13485:2016
Standard Options:
Diameter: Available in 3.5 mm, 4 mm, 4.5 mm, and 4.8/5 mm.
Length: Standard lengths of 1.8 m, 2.3 m, 2.5 m, 3 m, or customizable to OEM specifications.
Compatibility: Compatible with scopes (Storz, Wolf, Stryker, Olympus) and light sources (halogen, xenon, LED).
Salient Features:
High Light Transmission: Flexible cables with fine fibers for superior transmission and minimal loss.
Compact Design: Small-diameter fibers (40 microns onwards) for increased flexibility and optimized light throughput.
High Transmission Capacity: Achieved with high numerical aperture (NA) values of 0.53 and 0.66.
Durability: Fused fiber ends withstand temperatures up to 250°C, ensuring longevity.
White Light Transmission: Delivers consistent white light over extended transmission lengths.
Medical Grade: Autoclavable materials ensure compliance with stringent medical standards.
Technical Specifications:
Optical Fiber Material: Silicate
Core-to-Clad Ratio: 80:20
Numerical Aperture: 0.54 (65), 0.66 (82)
Wavelength Range: 380 – 1500 nm for maximum transmission
Sheathing Material: Metal flexible, silicone, or PVC per requirement
Applications:
These cables are specifically designed for medical applications such as:
Laparoscopy and Endoscopy
Surgical Headlights
Vitro-Retinal Surgery
Microscopes
Fitted with compatible connectors for scopes and light sources, they provide versatility across various medical equipment.
Note:
These optical cables are strictly for medical use and not suitable for telecommunication purposes. Their design is optimized for multi-mode medical fibers, ensuring the highest performance in healthcare environments.
Choose our Medical-Grade Video Cables for unmatched quality, reliability, and precision in your medical practices.
