Chamber Volume 70 L
Mount Type Vertical
Chamber Material Stainless Steel 304
Heating Mode Electric
Lid Type Radial Lock
Key Features

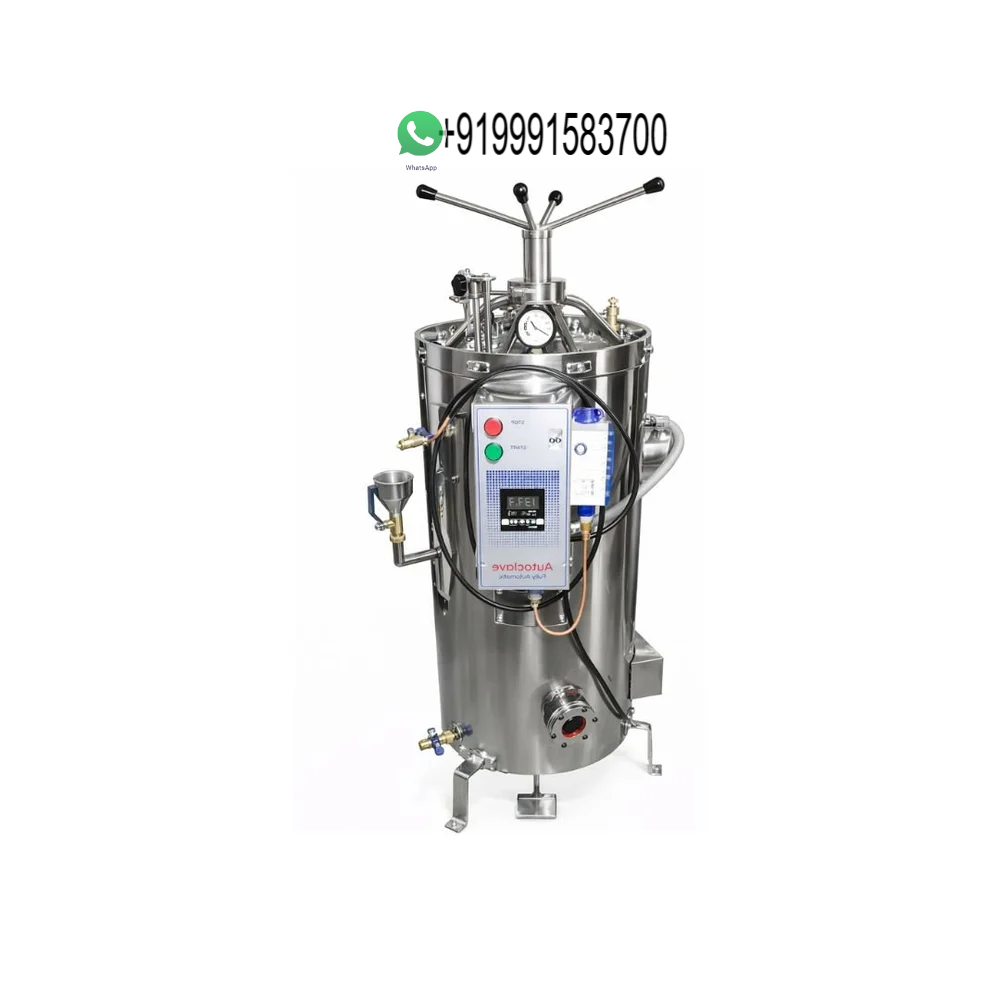

Hi-pressure vertical double chamber autoclave
Inner & outer chamber made of SS 304 grade stainless steel
Outer chamber works as steam storage jacket
Heavy duty radial locking system with paddle lifting device
Foot operated lid lifting mechanism
Built-in safety valve, pressure gauge & steam release valve
Water level indicator (gauge glass with SS guard)
Pressure adjustable from 5 PSI to 20 PSI
Automatic pressure control switch
Stainless steel release valve
Electric control box with switch & indicator lamps
Working temperature up to 121°C
Hydrostatic test pressure: 35 PSI (2.5 kg/cm²)
Leak-proof and corrosion resistant construction
Technical Specifications
Type: Hi-Pressure Double Chamber Autoclave (Radial Locking)
Chamber Size: 16 inch (Diameter) × 24 inch (Height)
Capacity: 70 Liters
Construction: Double Chamber (Inner Chamber + Steam Jacket)
Material: SS 304 (Inner & Outer)
Working Pressure: Adjustable 5–20 PSI
Maximum Working Temperature: 121°C
Hydro Test Pressure: 35 PSI (2.5 kg/cm²)
Pressure Gauge Range: 0–30 PSI
Heating System: Electric immersion heaters in steam jacket
Control Panel: Front mounted electrical control box
Power Supply: 220–240V AC, 50 Hz, Single Phase
Safety System: Safety valve + Automatic pressure control switch
Sealing: Heat resistant rubber gasket
