Patient Type Adult & Pediatric

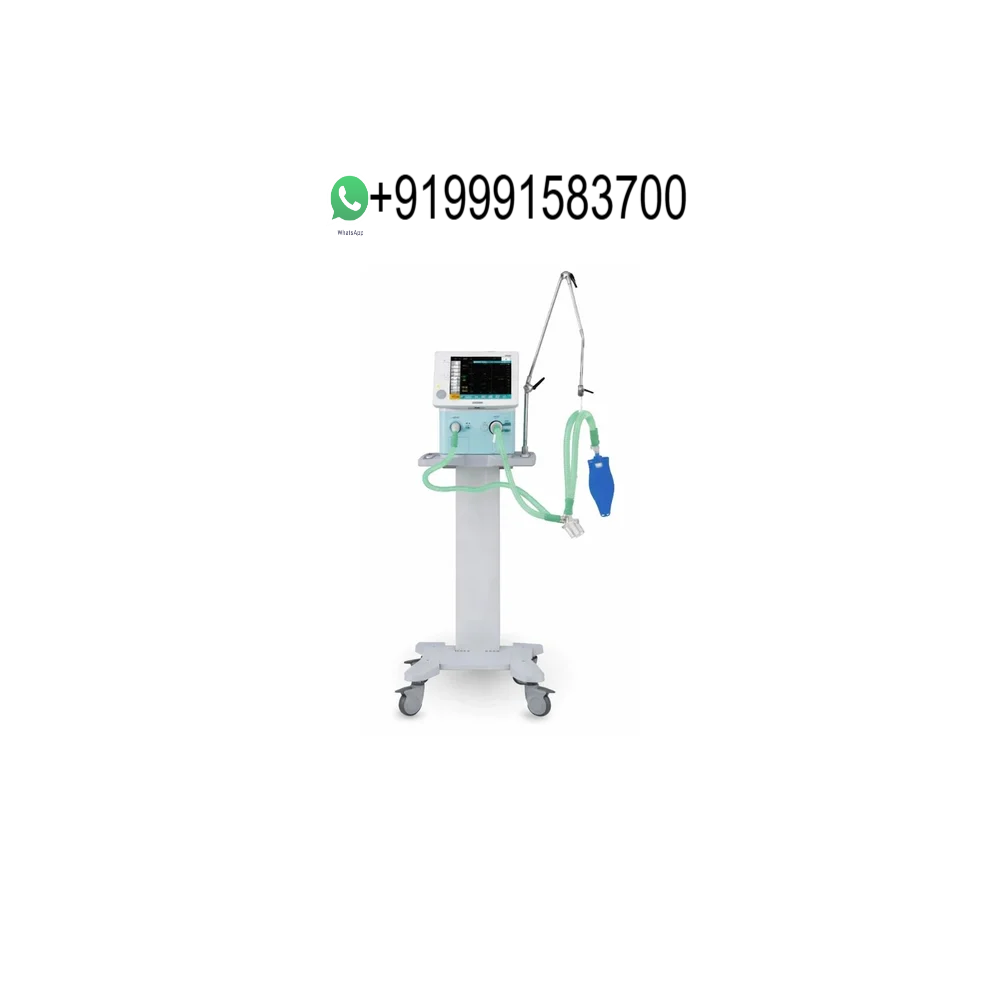

Ventilator Type AEONMED VENTILATOR
Ventilation Mode NIV Only
Application ICU
Display Size 12 inch
Power Source Electric
Breath Modes VC; PC; SIMV; PSV
Mobility Trolley Mounted
Mounting Type ICU
Feature
Advanced ventilator suitable for ICU, critical care, and emergency use
Supports invasive and non-invasive ventilation
Wide range of ventilation modes for diverse clinical needs
Assist/Control, SIMV, CPAP, and spontaneous breathing support
Compatible with adult and pediatric patients
Technical Specification
Ventilation Modes
VCV (A/C), PCV (A/C), STANDBY
SIMV (VCV+PSV), SIMV (PRVC+PSV)
SPONT/CPAP+PSV
NIV/CPAP, NIV-T, NIV-ST
Enhancements
Apnea ventilation
Pressure and Flow trigger
Automatic Tube Compensation (ATC)
Smart suction
Manual breath
Insp/Exphold
Screen freeze
Nebulization
Lung recruitment
Screen
12.1″ TFT color touch screen
Parameters
Tidal volume (VT): 20–2000 ml
Respiratory rate (RR): 1 to 80 bpm
Inspiratory time (Ti): 0.2 to 9 s (adult), 0.2 to 5 s (pediatric)
Inspiratory flow (Flow): 0 to 100 L/min (pediatric), 0 to 180 L/min (adult)
Inspiratory pressure (Pinsp): 5 to 70 mbar (or cmH₂O)
Inspiratory pressure limit (Pmax): 80 mbar (or cmH₂O)
PEEP: 0 to 35 mbar (or cmH₂O)
T slope: 0 to 2 s
O₂ concentration (FiO₂): 21 to 100 Vol%
Trigger sensitivity:
0.5 to 20 L/min (flow trigger)
−20 to 0 mbar (or cmH₂O) (pressure trigger)
I:E ratio: 1:10 to 4:1
Apnea alarm time: 10–60 seconds
Monitoring
Pressure values: Pplat, Ppeak, Pmean, Pmin, PEEP
Volume/Flow values: VTi, VTe, MV, MVe, MVspont
Time values: ftotal, fspont, I:E
Inspiratory O₂ concentration (FiO₂), End-expiratory CO₂ concentration (etCO₂)
Compliance (dynamic & static), Resistance (R), MVeak, RSBI, WOB, I:E, Vdaw, PEEPi
Pressure-Volume loop, Pressure-Flow loop, Flow-Volume loop
Alarms
Expiratory minute volume (MV) High/Low
Airway pressure (Paw) High/Low
VTe Low
PEEP High/Low
Insp. O₂ concentration (FiO₂) High/Low
End-expiratory CO₂ concentration (etCO₂) High/Low
fspont High
Apnea alarm
Disconnection
Flow sensor error
Gas supply
Electrical supply & battery failure
Exhalation obstruction
Apnea backup for low frequency alarm
VG70
Ventilator Packing:
Dimension : 750 mm × 750 mm × 750 mm
Weight : 18 kg
Trolley Packing:
Dimension : 1000 mm × 800 mm × 300 mm
Weight : 20 kg
