Condition Refurbished A
Patient Type Adult
Feature
For patients 5kg body weight and up
Presets to select the patient type, Infant, Pediatric or Adult patients

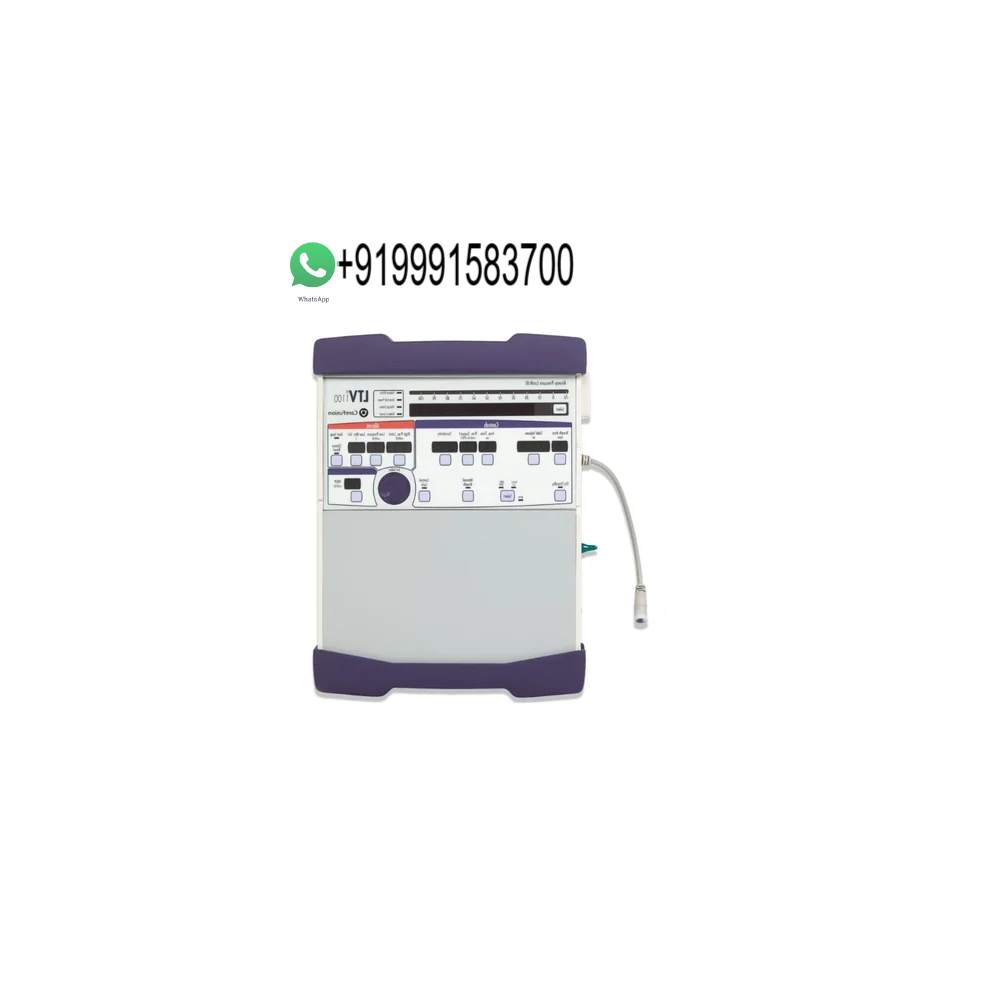

Ventilator preset optimization using the intuitive LTV 1200 interface
Illuminated active controls and alarms settings for easy identification of ventilation parameters.
Technical Specification
Controls
Power On/Standby
Ventilation modes: Control, Assist/Control, SIMV/CPAP and NPPV
Breath types: VC, PS and Spontaneous
Breath rate: 0–80 BPM
Tidal volume: 50–2,000 mL
Inspiratory time: 0.3–9.9 sec
PS/spontaneous flow: 160 LPM
Pressure support: 1–60 cmH₂O
0 (PEEP compensated)
Flow sensitivity: Off, 1–9 LPM
PEEP/CPAP: 0–20 cmH₂O
Manual breath: 1× current settings
Control lock: Easy or hard unlock
Environmental Specifications
Operating temperature: 5–40°C (40–104°F)
Storage temperature: −20 to 60°C (−4 to 140°F)
Operating humidity: 15–95% relative
Storage humidity: 10–95% relative
Shock compliance: IEC 68-2-27, MIL-STD-810F
Vibration compliance: IEC 68-2-34 and 68-2-6, MIL-STD-810F
Variable Alarms
Apnea interval: 10–60 sec
High pressure limit: 5–100 cmH₂O
Low peak pressure: Off, 1–60 cmH₂O
Low minute volume: Off, 0.1–99 liters
High PEEP: Off, 3–20 cmH₂O above set PEEP
Low PEEP: Off, −3 to −20 cmH₂O below set PEEP
High rate: Off, 5–80 BPM
Alarm volume: 60–85 dBA
Monitors and Indicators
Peak inspiratory pressure: 0–120 cmH₂O
Mean airway pressure: 0–99 cmH₂O
PEEP: 0–99 cmH₂O
Breath rate: 0–250 BPM
Airway pressure display: −10 to 108 cmH₂O
Exhaled tidal volume: 0–4,000 mL
Exhaled minute volume: 0–99.9 liters
I:E ratio: 99:1 to 1:99
Calculated peak flow: 10–100 LPM
Packing:
Dimension : 13.5” x10.5”x 3.25”
Weight : 6.5 kg
