Chamber Volume 175 L
Mount Type Horizontal
Chamber Material SS 304 / SS 316
Max Temperature 121 C
Door Type Radial Lock
Heating Mode Electric
Key Features

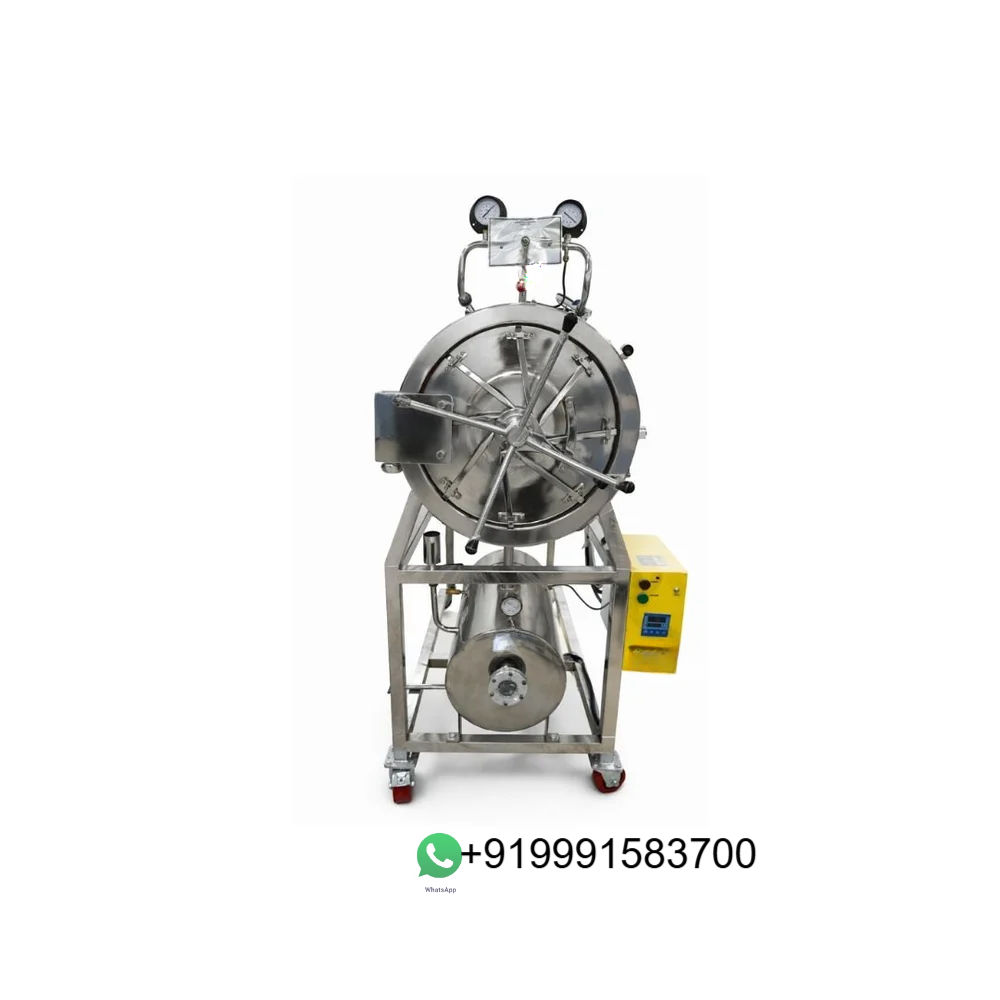

Horizontal cylindrical steam sterilizer
Large 175 Liters chamber capacity
Gravity air displacement system
Sterilization at 121°C (Optional 134°C)
Heavy-duty radial locking multi-arm door
Dual pressure gauge display
Vacuum drying provision
Mounted on robust MS tubular frame
Technical Specifications
Type: Horizontal Cylindrical Autoclave
Chamber Size: 20″ (Dia) × 36″ (Depth)
Capacity: 175 Liters
Sterilization Temperature: 121°C standard (134°C optional)
Sterilization Method: Steam under pressure (Gravity type)
Exhaust System: Fast & Slow exhaust option
Working Pressure: Up to 1.36 kg/cm² (20 PSI)
Vacuum Capacity: Up to 250 mm (10″) Hg
Safety Valve: Spring-loaded safety valve
Pressure Gauges: Dual gauge (Chamber & Jacket)
Chamber Material: SS 304 / SS 316 Boiler Grade Stainless Steel
Outer Body: Mild Steel powder coated / Stainless Steel
Door Type: Radial locking multi-arm system
Gasket: High temperature resistant silicone gasket
Frame: Heavy-duty MS tubular stand with anti-skid legs
Finish: Corrosion-resistant polished chamber
Electrically operated control panel
Energy-efficient heating elements
Pressure control device incorporated
Steam release control mechanism
Heavy-duty immersion heating elements
